The QRail® Series is an innovative rooftop racking system featuring QClick® and QSplice® technology that simplifies and speeds installation. QRail® seamlessly combines with QuickMount® waterproof mounts to provide a complete, fully integrated racking and mounting solution for installing solar PV modules on any roof.
QClick® and QSplice® technologies make installation fast and easy. Electrical bonding is fully integrated into every system component. QRail® also comes with QDesign®, a free online tool to enable quick and easy design of solar array configurations, generate complete engineering reports and calculate a precise bill of material for all the mounting, racking and accessories needed for a complete solar array. QRail® is available in aluminum mill and black finishes.
QClick Technology®
The universal mid and end clamps use QClick® technology to simply “click” into the rail channel and remain upright, ready to accept the module. The pre-assembled clamps fit virtually all module frames and require no extra hardware, eliminating pre-loading and reducing installation time. Once installed, the clamps easily slide in the channel for fine-tuning module placement.
QSplice® Technology
QRail® innovative internal QSplice® installs flush in seconds, requiring no tools or screws. Simply insert QSplice® into the rail and slide the other rail on to create a fully structural, bonded splice.
Fully Integrated Electrical Bonding
The QRail® system provides an integrated electrical bonding path, ensuring that all exposed metal parts and the solar module frames are electrically connected. All electrical bonds are created when the components are installed and tightened down.
Comprehensive, One-Source Solution
QRail®, together with QuickMount® waterproof mounting products, provides the benefit of a single-sourced, seamlessly integrated rooftop installation that works with all roof types — composition/asphalt shingles, flat or curved tile, metal shingle, shake, slate and low slope roofs. The QRail® system also works with any roof attachment system for maximum flexibility.
Superior Strength & Versatility
QRail® is engineered for optimal structural performance. The system is certified to UL 2703, is fully code compliant and backed by a 25-year warranty. QRail® is available in Light and Standard versions to match all geographic locations. QRail® is compatible with virtually all modules and works on a range of pitched roof surfaces. Solar modules can be mounted in portrait or landscape orientation in standard or shared-rail configurations.
Features
- Aluminum QRails® are available in two sizes to match all climate conditions: Standard and Light.
- QRails® come in three lengths – 168 inches (14 ft), 183in (15.25ft), and 208 inches (17.3 ft) – and in two finishes: mill and black.
- Designed for strength and versatility.
- Modules can be mounted in portrait or landscape orientation in either standard or shared rail configurations.
- Universal mid- and end-clamps fit nearly all module sizes.
- Mid and end clamps with QClick Technology® install quickly and remain in position for easy module placement.
- QSplice® tool-free, bonded, structural splice installs in seconds.
- Fully integrated electrical bonding.
- Module-level power electronics can be easily attached and electrically bonded.
- QDesign®, a free online design tool.
- 25-year limited product warranty.
Technical Data
| Description | Data |
|---|---|
| Application | Low and steep slope roofs |
| Roofing type | Suitable for most types of roofing |
| Roof slope | Up to 45°* (up to 12:12) |
| Building height | Up to 60 ft / 18.25 m* |
| PV modules | Framed |
| Module orientation | Landscape or portrait |
| Size of module array | Any size possible* |
| Position of the module array | No special requirements* |
| Distance between roof attachment points | Up to 10 ft / 3 m* |
| Maximum Rail Cantilever | 1/3 maximum allowable span for project |
| Codes & Standards | IBC/IRC 2018 IBC/IRC 2015 IBC/IRC 2012 ICC-AC428 2012 ASCE 7-05 ASCE 7-10 ASCE 7-16 CBC/CRC 2016 CBC/CRC 2019 ANSI/ UL 2703 Ed. 1 FBC/FRC 2020 Aluminum Design Manual 2010, 2015 SEAOC PV2 – 2012, 2017 |
| Supporting profiles | Extruded Aluminum |
| Small parts | Stainless steel |
| Color | Mill or Black finish |
| Warranty | 25 years** |
*Different maximum values may apply, depending on site, building, choice of roof attachment and module type. Refer to QRail Code Compliance letters or site-specific engineering. **Limited product warranty.
System Components
| Component | Image | Description |
|---|---|---|
| QRail Series |  | QRail available in Light & Standard in 14ft (168in), 15.25ft (183in), or 17.3ft (208in) lengths. |

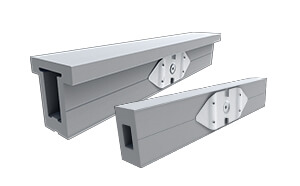

| QSplice - Internal Splice |  | Internal splices available for Light & Standard QRails. Tool-free installation, integrated bonding, & structural. |

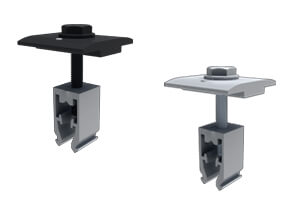

| Universal Bonded Mid Clamps with QClick Technology |  | The Universal Mid Clamp with QClick Technology is available in 30-45mm & 38-50mm sizes. Hardware is pre-assembled. |

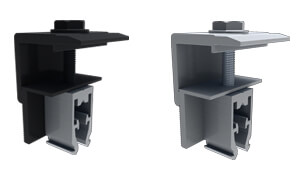

| Universal End Clamps with QClick Technology |  | The Universal End Clamp with QClick Technology is available in 30-45mm & 38-50mm sizes and with optional bonding clip. Hardware is preassembled. |

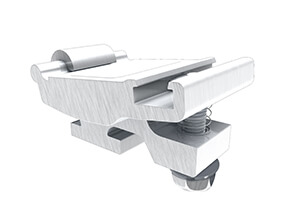

| Hidden End Clamp |  | Hidden End Clamp allows for the module to be installed flush to the end of the rail and works with most modules. |
| QSkirt |  | The QSkirt comes in 14ft lengths and is attached using QRail System clamps. End caps and splices are available. |

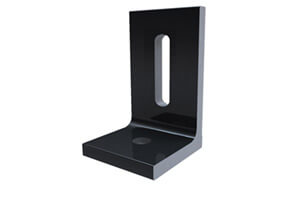

| L-Foot |  | Available in mill or black finish. |

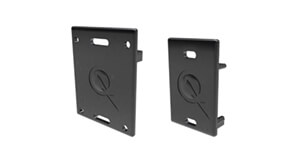

| End Caps |  | End Caps are available for Light & Standard QRails. |

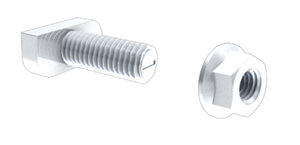

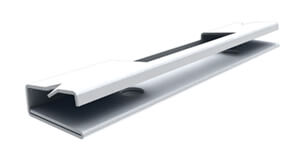

| T-Bolt |  | T-Bolt and nut. Engagement indication line on bolt must be vertical to show the bolt is fully engaged in the t-bolt channel. |
| Grounding Lug |  | Preassembled lay-in lug. Engagement indication line on bolt must be vertical to show the bolt is fully engaged in the t-bolt channel. 50 Qty. |
| Wire Clip |  | Wire clip for PV or trunk cables. |
| WEEB BMC |  | Optional WEEB BMC for use with End-Clamps. |
