Aire® Tilt Mount System
Racking Accelerated®

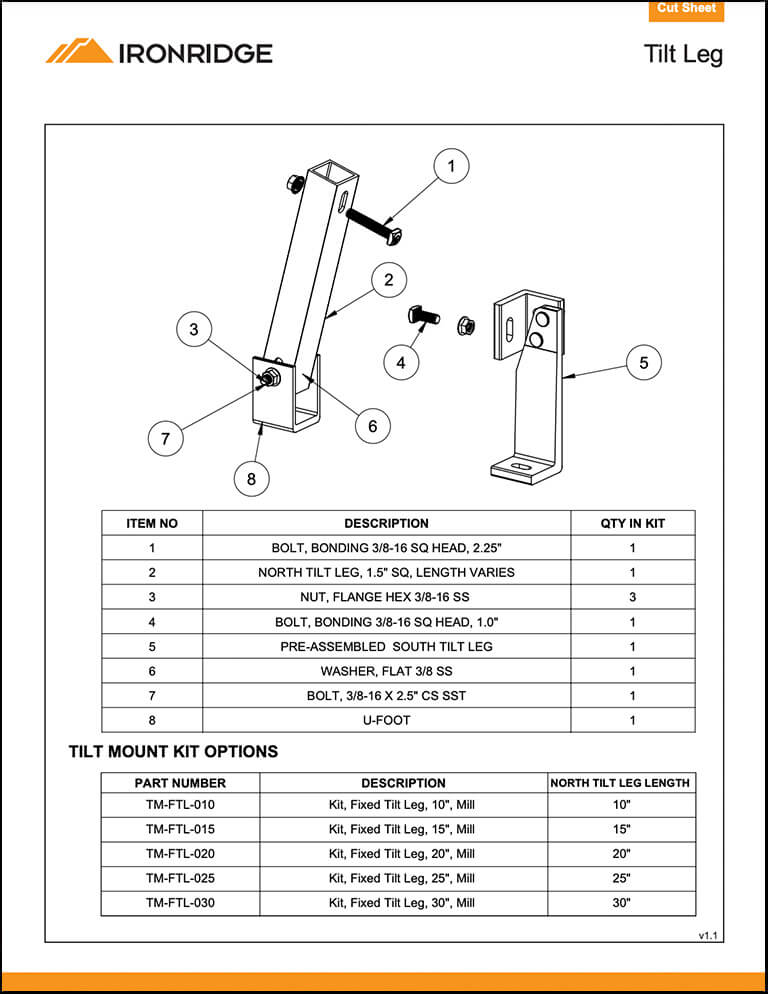

The Aire® Racking System is now supported by IronRidge Tilt Legs—for installations on flat roofs. It has been carefully crafted to streamline every part of the process, so you can get off the roof faster than ever.
Strength Tested
All components have been evaluated for superior structural performance.
UL 2703 & 3741 Listed
Entire system meets UL standards for solar racks, with or without MLPE devices.
Approved Cable Tray
Open rail channel conforms to NEMA VE 1, certified for holding PV cables.
Class A Fire Rating
Certified to maintain the fire resistance rating of the existing roof.
PE Certified
Pre-stamped engineering letters are available in most states.
25-Year Warranty
Products guaranteed to be free of impairing defects.
Available in Design Assistant
- Comprehensive reaction forces
- Turbo-charged calculation engine
- Roof material & attachment selector
- Auto-generated documents package
Aire® Components
The lighter, open Aire® Rail for standard conditions.
• 6’ spanning capability
• Wire management tray
• Mill or anodized black
The tougher, open Aire® Rail for higher load capacity.
• 8’ spanning capability
• Wire management tray
• Mill or anodized black
Structurally connect and bond Aire® Rails together.
• Reinstallable, up to 5x
• Internal splice design
• No more splice rules

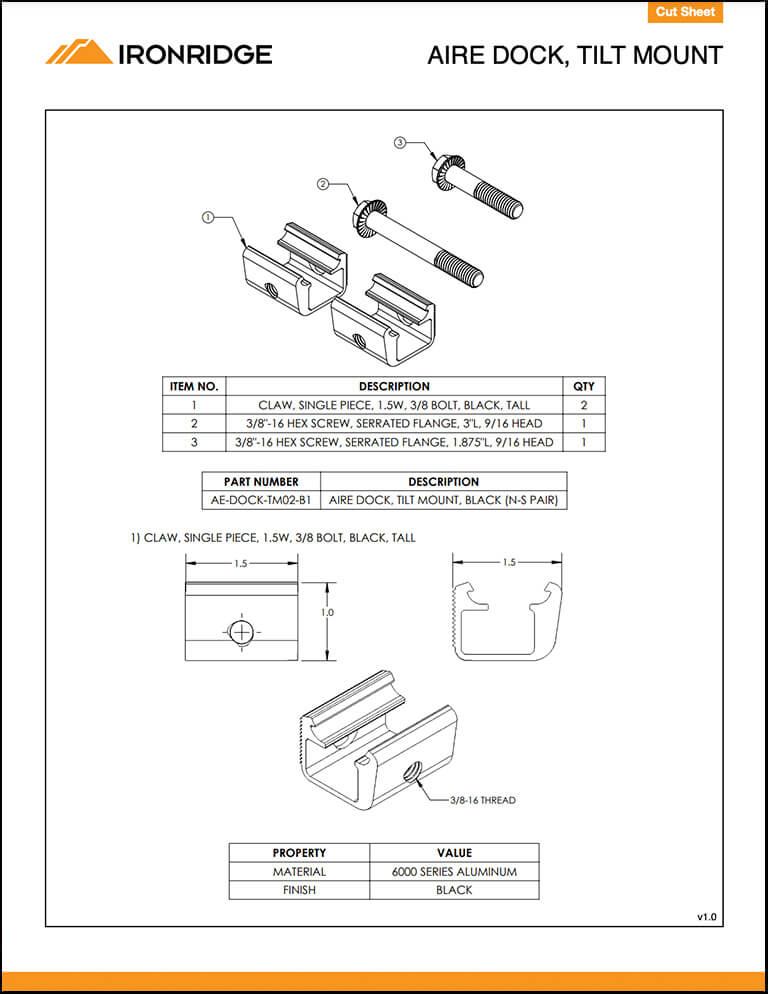

Connects Aire® Rails to IronRidge Fixed Tilt Legs.
• Clicks on, slides easily
• Includes hardware
• Anodized assembly
Securely bond between modules to Aire® Rails.
• Fits 30-40mm modules
• Utilizes UFO® design
• Minimal 1/2” gap
Securely bond modules to Aire® Rails along ends.
• Fits 30-40mm modules
• Easy rail engagement
• Clean aesthetics
Securely bonds modules to rail ends, entirely hidden.
• Angled for easy install
• Robust tether leash
• Fits most modules
Bonds Aire® Rails to grounding conductors.
• Simplified with single bolt
• Low-profile form factor
• Works with 10-6 AWG
Aire® Caps
Block entry and provide a finished look to Aire® Rails.
• Stay secure on rail ends
• Symmetrical, with drain
• Cover rough-cut ends
Keeps wiring contained in open Aire® Rail channels.
• No module interference
• Simple press-in design
• Slot for easy removal
Securely bonds MLPE and accessories to Aire® Rails.
• Glove-friendly installation
• Lays flush in rail channel
• Low profile form factor
Attaches rails to tile roofs, with Aire® Dock included.
• Works on flat, S, & W tiles
• Single-socket installation
• Optional deck flashing
