Customizable support for any roof.
Fully certified.
Adding solar to a flat roof has built-in complexity and requires a wide array of options to meet the building requirements—such as a mechanically attached system, a ballasted system, or even a hybrid system.
Tilt Mount System
An attached system that utilizes the strength of XR Rails to support a wide range of solar panel tilting angles.
BX Ballasted System
A ballasted system that delivers superior power density and design flexibility without penetrating the roof.
Hybrid Systems & Seismic Anchors
IronRidge bridges these two approaches (attached and ballasted) by certifying our Flat Roof Attachment–a high-strength cast aluminum attachment–for use on our ballasted system.
Hybrid systems can take advantage of having a mix of Flat Roof Attachments on a BX Ballasted System to lessen the amount of ballast weight needed and/or accommodate regions that require seismic anchors.
Components
| Image | Name | Description | Product Type | Product Line | Flat Roof System |
|---|---|---|---|---|---|
|
XR Rail® Family | XR Rails® have a unique curved profile that increases structural strength and spanning capability, meaning fewer roof penetrations and more cost-effective designs. | Racking | IronRidge | Flat Roof, Ground Based, Pitched Roof, Tilt Mount |
|
BOSS® Bonded Structural Splice | The BOSS® provides a strong, bonded connection for XR Rails®. No assembly, tools, or hardware required. | Racking | IronRidge | Flat Roof, Ground Based, Pitched Roof, Tilt Mount |
|

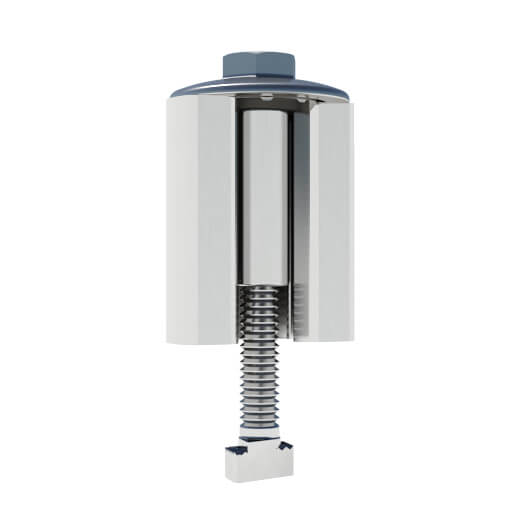

UFO® | The Universal Fastening Object is a universal, single-piece mid clamp. When combined with a Stopper Sleeve, the UFO® functions as an end clamp. | Hardware | IronRidge | Flat Roof, Ground Based, Pitched Roof, Tilt Mount |
|
CAMO™ | This tool-free, universal, invisible end clamp is designed to bond and secure while improving array aesthetics. It comes as one piece, fully assembled. | Hardware | IronRidge | Flat Roof, Ground Based, Pitched Roof, Tilt Mount |
|
JayBox® Junction Box | JayBox® Junction Box Protect the Nest JayBox® is an ever-adaptable junction box, designed to securely enclose wires on nearly any solar project—with ample space to shelter up to 4 module strings.... | Accessory | QuickMount® | Ballasted, Flat Roof, Ground Based, Pitched Roof, Tilt Mount |
|
QBase® Low Slope Deck Mount | The QBase® Low Slope Mount is one of the strongest mechanically attached standard solar mounts available. The aluminum QBase® post has a 50 year life and is warranted to 20 years. The Low Slope Mount is available in 7", 9" and 12" heights. | Attachment | QuickMount® | Flat Roof |
|
Compatible Roof Membranes | Formed membrane covers are matched to major roofing brands to ensure a tested, engineered system for TPO, PVC, and KEE roofs. No additional sealant necessary. | Attachment | IronRidge | Flat Roof, Tilt Mount |
|
BX Chassis | BX Chassis is designed to clamp PV modules and secure them in place. The Chassis is available in two SKUs: 5 and 10 degree tilt configurations. | Racking | IronRidge | Ballasted, Flat Roof |
|
Fixed Tilt Legs | Tilt assembly to the desired angle, up to 30 degrees. Kits include South and North Tilt Leg and all hardware. | Racking | IronRidge | Flat Roof, Tilt Mount |
|
Flat Roof Attachment | Combine a high-strength cast aluminum base with 16-point fastening pattern to enable the widest range of design options on low-sloped roofs. | Attachment | IronRidge | Flat Roof, Tilt Mount |
|
Accessories | Provide a finished look and support electrical wires. Constructed from UV-stabilized polymers for long-lasting performance: End Caps & Wire Clips. | Accessory | IronRidge | Flat Roof, Ground Based, Pitched Roof, Tilt Mount |
|
Hardware | All hardware is designed for single-tool installs, low profiles, and in support of our UL 2703 listings: Grounding Lugs, T-bolts, Square-bolts and MI kits. | Hardware | IronRidge | Flat Roof, Ground Based, Pitched Roof, Tilt Mount |
Free Flat Roof Online Design Tools
- Comprehensive reaction forces
- Turbo-charged calculation engine
- Roof material & attachment selector
- Auto-generated documents package
