Eclipse — XR Hidden End Clamp
Keeping Solar Clean & Sleek
Most solar installations use mounting rails and fasteners to secure modules to the building structure, but these clamping components can protrude from the sides of the modules and give arrays a coarse look.

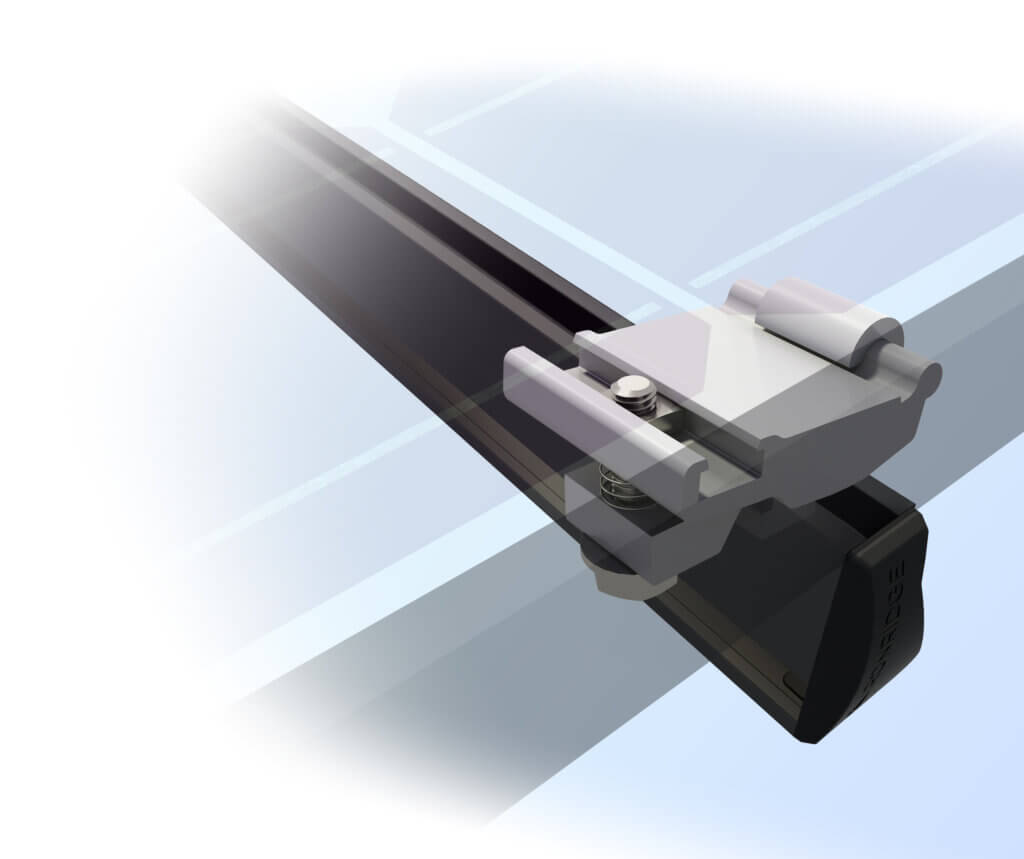

Eclipse is an end clamp—for XR Rails®—that stays hidden, out of sight, while securing solar modules flush to rail ends. This creates a clean and sleek appearance that homeowners are fond of. Eclipse works with nearly all solar modules and installs with a simple 7/16” socket.

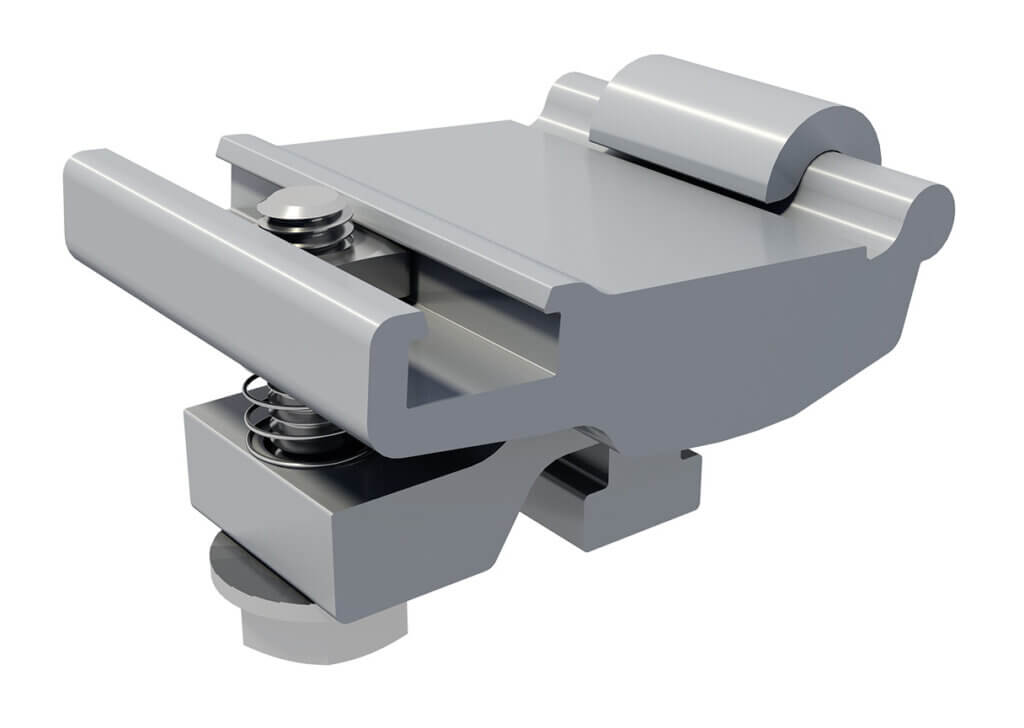

Anodized & Pre-Assembled
Eclipse arrives with a clear anodized finish to protect against corrosion. It also come pre-assembled, so there are no loose parts. Clamps can also be installed on either side of rail.
Aesthetically-Pleasing Arrays

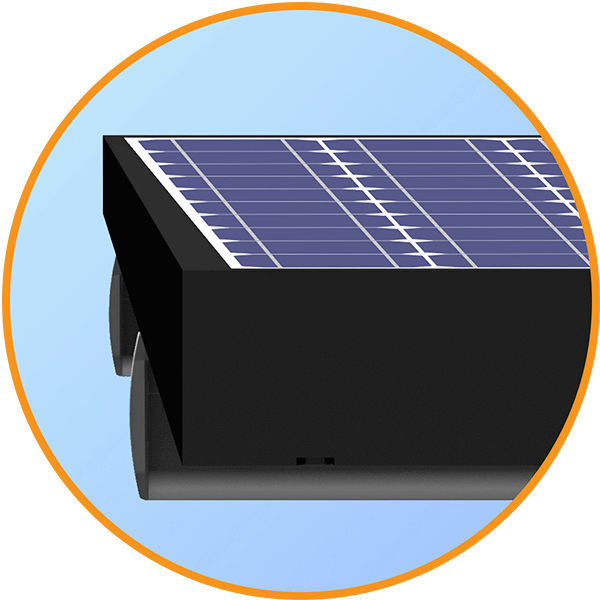

As a hidden end clamp, Eclipse provides a clean and sleek look to the array without any protruding rails around the perimeter.

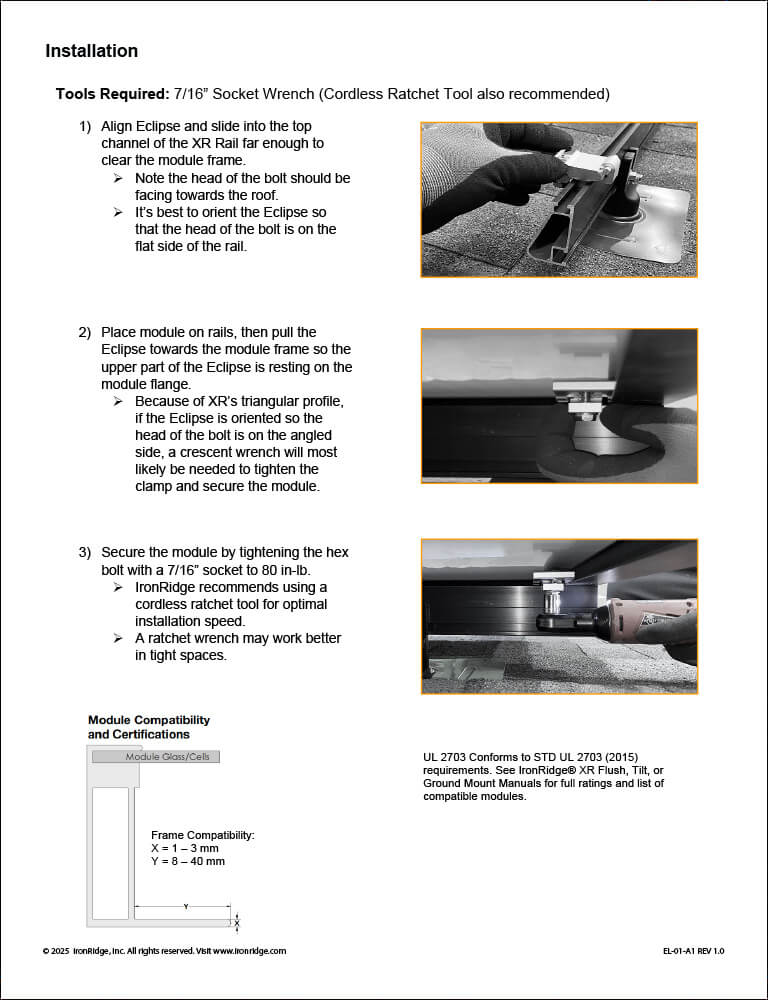

The Installation Process

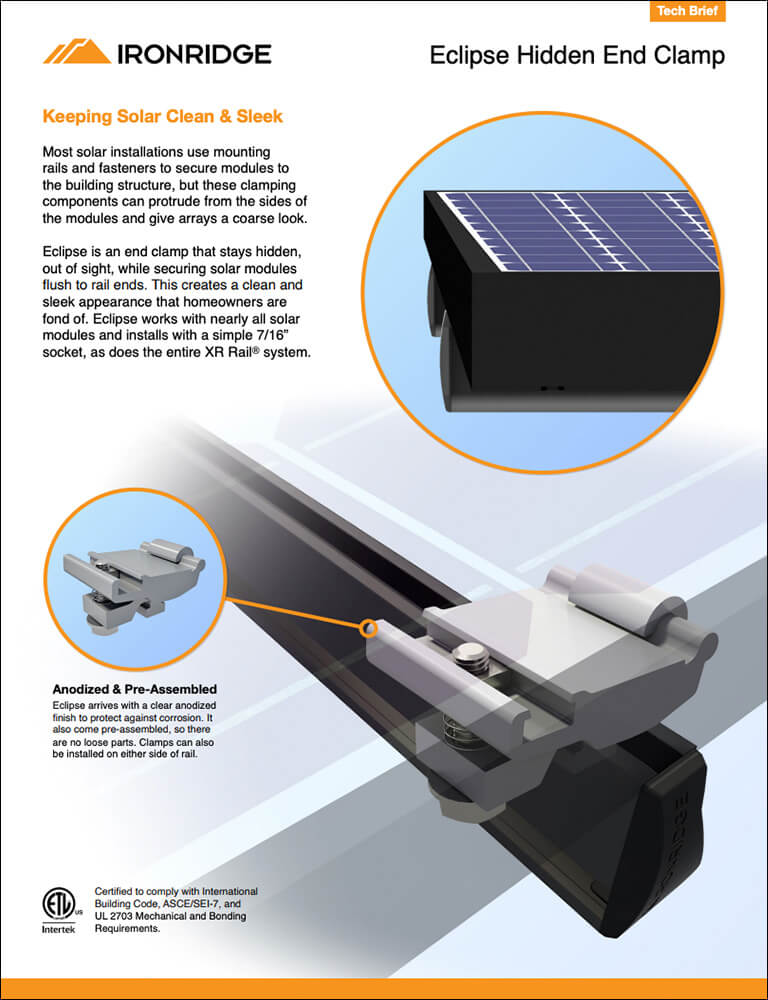

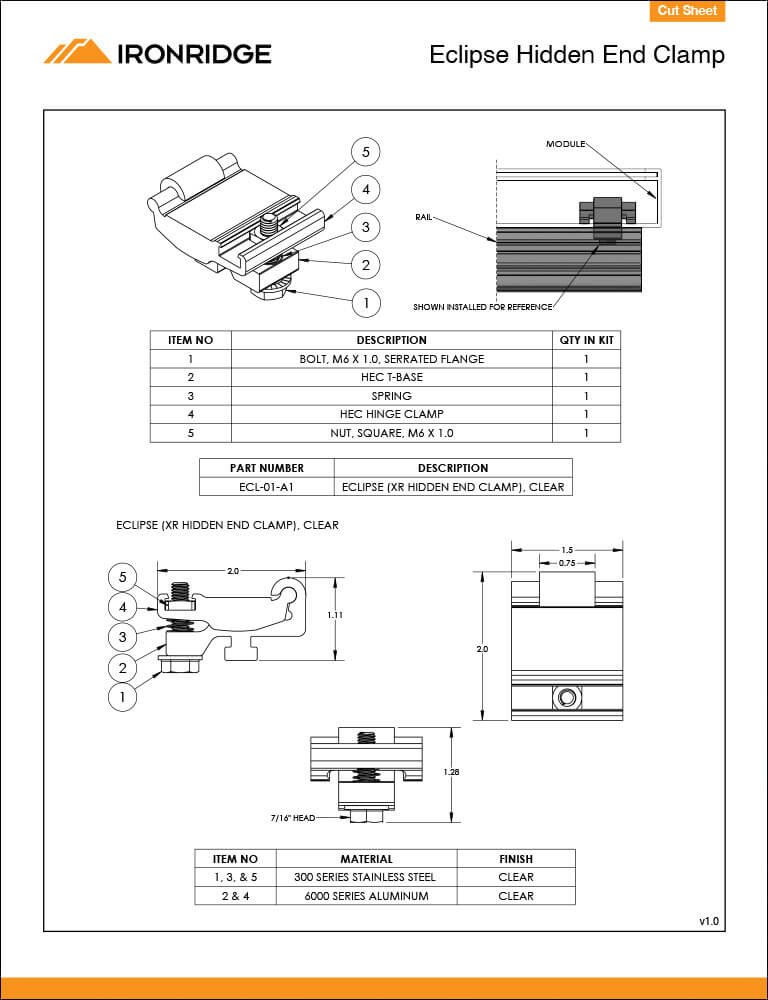

Eclipse Documentation
UL 2703 Certification
IronRidge® Systems are listed to UL 2703, the standard for evaluating solar mounting systems. This ensures they maintain strong electrical and mechanical connections over an extended period of time in extreme outdoor environments.
25-YEAR WARRANTY
IronRidge® products come with a 25-year warranty, guaranteeing they will be free of defects in materials and manufacturing which materially impair the use of the products for the purposes for which they were designed.
